Bb Minor Scale Fretboard Map
Five flats shape the Bb minor scale: Bb, C, Db, Eb, F, Gb and Ab. Db major holds the same seven notes, which is useful when a progression drifts between the two.
The root is on the 1st fret of the A string, or on the 6th fret of the low E string. If a flat key still makes you hesitate, the notes on the fretboard chart is a fast way to check where Gb and Db live.
Play the Bb minor scale
Use the step menu in the player to switch between the single-string run and the box shapes.
Notes of the Bb minor scale
| Note | Degree | Interval | Semitones from root |
|---|---|---|---|
| Bb | 1 | Root | 0 |
| C | 2 | Major 2nd | 2 |
| Db | b3 | Minor 3rd | 3 |
| Eb | 4 | Perfect 4th | 5 |
| F | 5 | Perfect 5th | 7 |
| Gb | b6 | Minor 6th | 8 |
| Ab | b7 | Minor 7th | 10 |
Structure
Bb minor scale notes:
How the minor scale is built:
The minor scale is built from the degrees 1 2 b3 4 5 b6 b7, which gives the step pattern W-H-W-W-H-W-W (W = whole step, H = half step).
Counting in semitones from the root: 0, 2, 3, 5, 7, 8, 10. That makes it a 7-note scale.
It is mode 6 of the Major Scale, so both scales share the same notes from a different starting point.
It is also known as Aeolian and Natural Minor.
Bb Minor Scale Guitar Patterns
Static diagrams of every position shown in the player above.

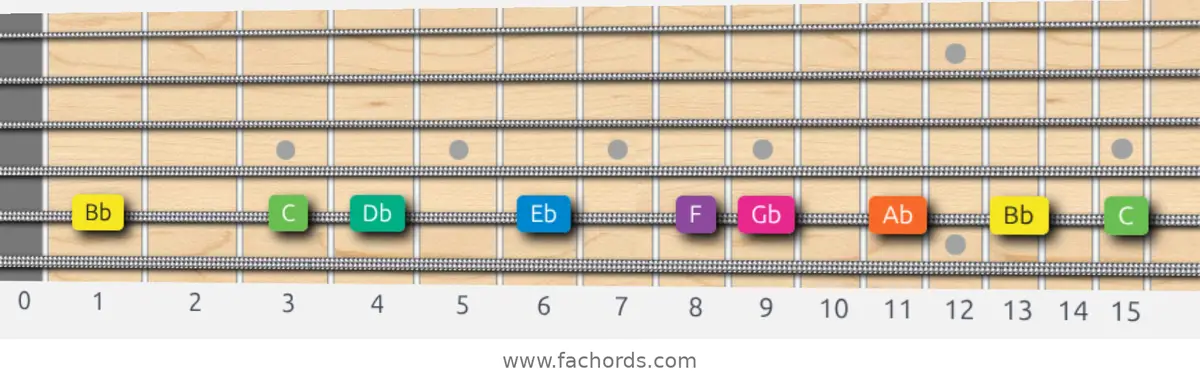

On one string (A)

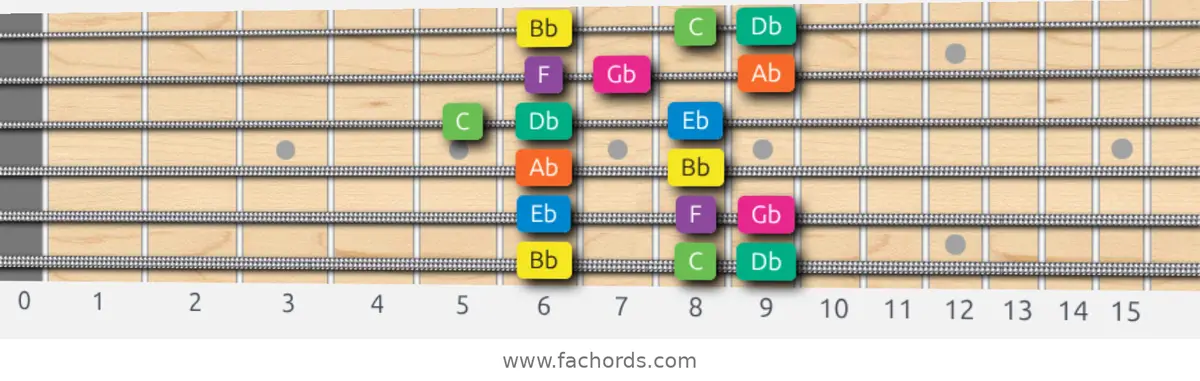

Box pattern — position 1
Box pattern — position 2

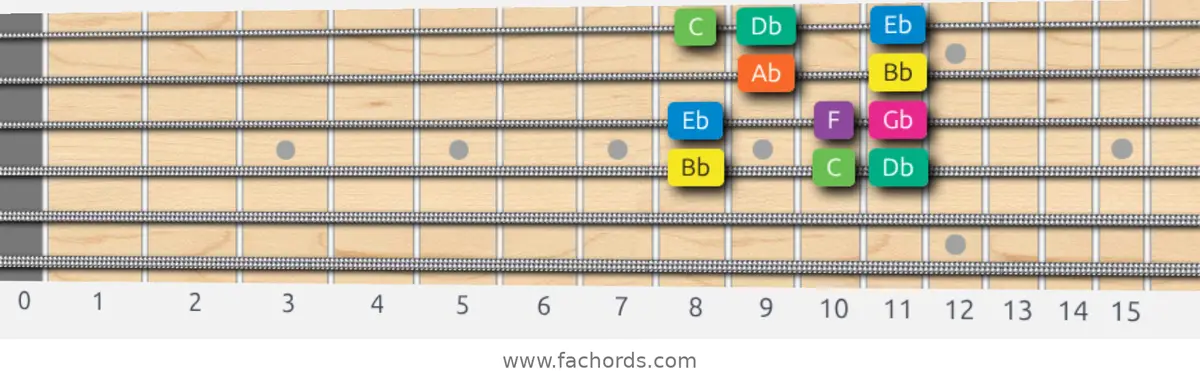

Box pattern — position 3
Box pattern — position 4

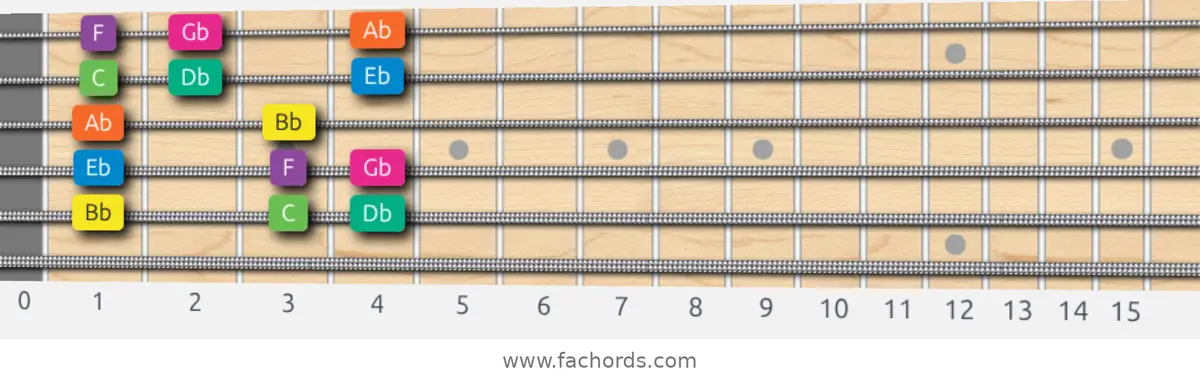

Box pattern — position 5

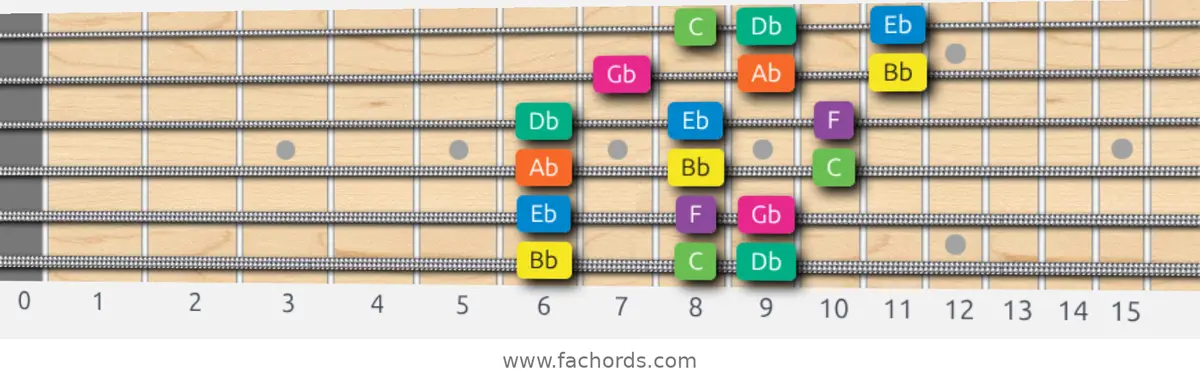

3 notes per string — position 1

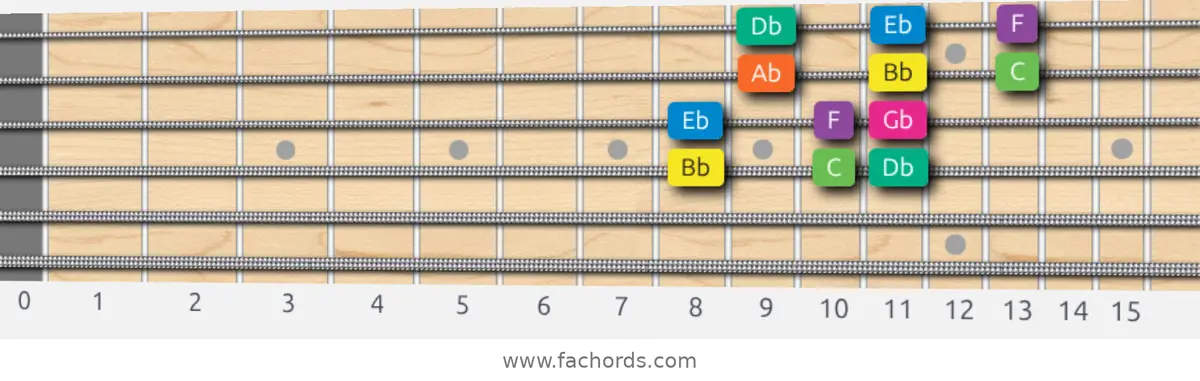

3 notes per string — position 2

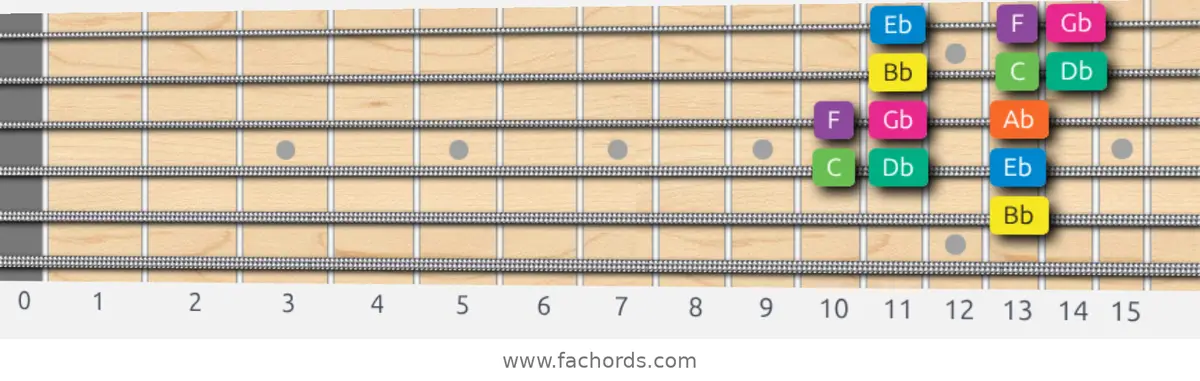

3 notes per string — position 3

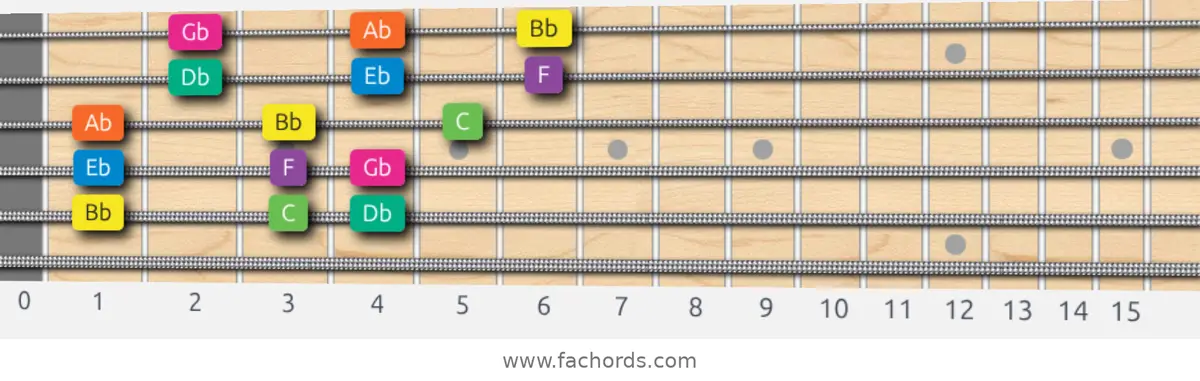

3 notes per string — position 4

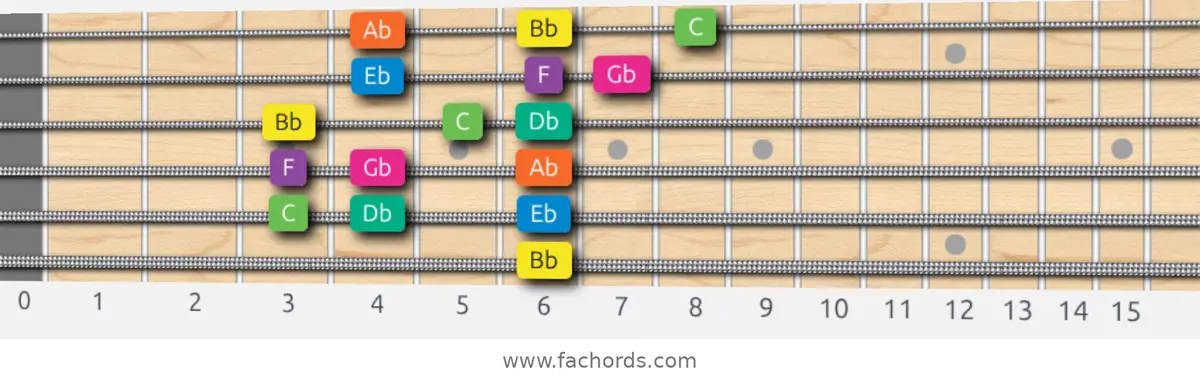

3 notes per string — position 5
Chords in the Bb minor scale
Stacking thirds on each degree of the scale gives these chords.
Related modes
These scales share the same notes as the minor scale, starting from a different degree.
The minor scale in other keys
