This mega guide will teach you everything you need to become a guitar scales master.
After learning strumming chords, the next most common step is to begin practicing single-note melodies, and knowing your scale patterns it's helpful in this process.
Important: if you are approaching guitar scale for the first time, jump to the Major scale tutorial, a complete resource that will give you the foundation of such a broad topic.
To help you master guitar scales, I've created these additional resources:
- A chart with hundreds of scale patterns (with the most used scales in Western music and some exotic ones)
- A complete guitar scale tutorial for beginners
- An interactive software application that shows you scale patterns all along the fretboard.
- A downloadable scale ebook in pdf format
So let's begin!
Table Of Contents
Complete Guitar Scales Chart
Here's a chart with the most used scales. Each link will take you to a new page that shows you several fretboard patterns (4 notes box and 3 notes per string) for playing the scale.
This scales dictionary also provides the name of the notes and the intervals that compose the scale, plus a handy guitar tab with mp3 audio. It also shows some guitar arpeggios.
P.s. All the charts show the scale with the note C as the root, you can move the patterns up and down the neck to play a scale with a different note.
Common Scales
Scale | Structure | Note Names |
---|---|---|
Major Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;D;E;F;G;A;B |
Minor Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;D;Eb;F;G;Ab;Bb |
Major Pentatonic Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;D;E;G;A |
Minor Pentatonic Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;Eb;F;G;Bb |
Major Blues Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;D;Eb;E;G;A |
Minor Blues Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;Eb;F;Gb;G;Bb |
Modes from the Major Scale
Scale | Structure | Note Names |
---|---|---|
Major Scale (Ionian) | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;D;E;F;G;A;B |

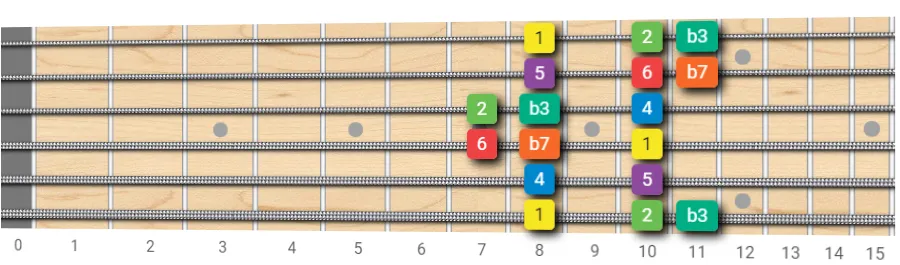

Dorian Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;D;Eb;F;G;A;Bb |
Phrygian Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;Db;Eb;F;G;Ab;Bb |

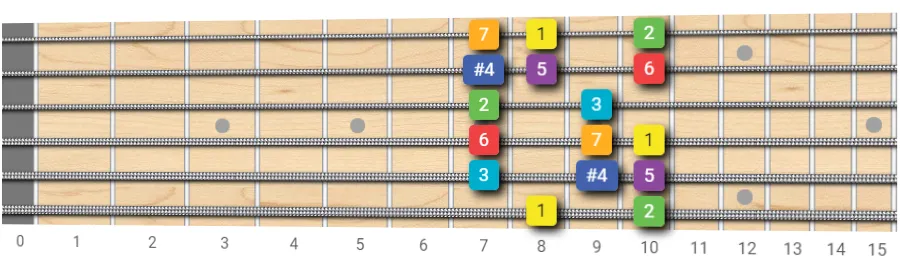

Lydian Scale | 1 b2 2 b3 3 4 #4 5 #5 6 b7 7 | C;D;E;F#;G;A;B |

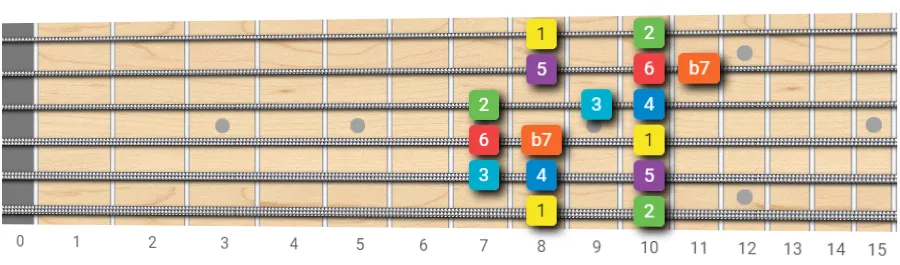

Mixolydian Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;D;E;F;G;A;Bb |
Minor Scale (Aeolian) | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;D;Eb;F;G;Ab;Bb |
Locrian Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;Db;Eb;F;Gb;Ab;Bb |
Modes From The Harmonic Minor Scale
Scale | Structure | Note Names |
---|---|---|
Harmonic Minor (Aeolian Maj 7) | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;D;Eb;F;G;Ab;B |
Locrian #6 Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;Db;Eb;F;Gb;A;Bb |
Ionian #5 Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;D;E;F;G#;A;B |
Dorian #4 Scale | 1 b2 2 b3 3 4 #4 5 #5 6 b7 7 | C;D;Eb;F#;G;A;Bb |
Phrygian Dominant Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;Db;E;F;G;Ab;Bb |
Lydian #2 Scale | 1 b2 2 b3 3 4 #4 5 #5 6 b7 7 | C;D#;E;F#;G;A;B |
Super Locrian Bb7 Scale | 1 b2 2 b3 3 4 b5 5 b6 bb7 b7 7 | C;Db;Eb;Fb;Gb;Ab;Bbb |
Modes from The Melodic Minor Scale
Scale | Structure | Note Names |
---|---|---|
Melodic Minor Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;D;Eb;F;G;A;B |
Dorian B2 Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;Db;Eb;F;G;A;Bb |
Lydian Augmented Scale | 1 b2 2 b3 3 4 #4 5 #5 6 b7 7 | C;D;E;F#;G#;A;B |
Lydian Dominant Scale | 1 b2 2 b3 3 4 #4 5 #5 6 b7 7 | C;D;E;F#;G;A;Bb |
Mixolydian B6 Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;D;E;F;G;Ab;Bb |
Aeolian B5 Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;D;Eb;F;Gb;Ab;Bb |
Super Locrian Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;Db;Eb;Fb;Gb;Ab;Bb |
Diminished Scales
Scale | Structure | Note Names |
---|---|---|
Half Diminished Arpeggio | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;Eb;Gb;Bb |
Diminished 7th Arpeggio | 1 b2 2 b3 3 4 b5 5 #5 bb7 b7 7 | C;Eb;Gb;Bbb |
Symmetrical Scales
Scale | Structure | Note Names |
---|---|---|
Whole-Tone Scale | 1 b2 2 b3 3 4 #4 5 #5 6 b7 7 | C;D;E;F#;G#;Bb |
Whole-Half Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;D;Eb;F;Gb;Ab;A;B |
Half-Whole Scale | 1 b2 2 b3 3 4 #4 5 #5 6 b7 7 | C;Db;D#;E;F#;G;A;Bb |
Exotic Scales
Scale | Structure | Note Names |
---|---|---|
Indian Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;Db;F;G;Ab |
Japanese Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;D;F;G;Ab |
Gipsy Hungarian Scale | 1 b2 2 b3 3 4 #4 5 b6 6 b7 7 | C;D;Eb;F#;G;Ab;B |
Neapolitan Scale | 1 b2 2 b3 3 4 b5 5 #5 6 b7 7 | C;Db;Eb;F;G;A;B |
Persian Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;Db;E;F;Gb;Ab;B |
Jewish Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;Db;E;F;G;Ab;Bb |
Bizantine Scale | 1 b2 2 b3 3 4 b5 5 b6 6 b7 7 | C;Db;E;F;G;Ab;B |
Arabic Scale | 1 b2 2 b3 3 4 #4 5 #5 6 b7 7 | C;D;Eb;F;F#;G#;A;B |
Get Free Chords, Scales and Fretboard Ebooks:
Be sure to check the free download area: you'll find several pdf
ebooks
that will
teach you new chords, scales, fretboard notes and theory. A great help for improving your
skills!
How To Play Scales on Guitar | Beginner Tutorial
At first, we're going to understand what a scale exactly is , then we'll see the most common guitar scales that you must know, and then we'll list (almost) all the types of guitar scales existing in music.
I've recorded a video that shows you how to play the most common scales used in Western Music (in the first improvisation part I also do some bendings):
What is a scale
Scales are not the same as chords. Chords are built of notes made from scales. When we practice scales we play them one note at a time, unlike a chord. They really are a necessity though if you want to advance musically, even if you just learn a few basic scales.
We can consider a scale as a way to go from one note (say C) to the same note one octave upper .

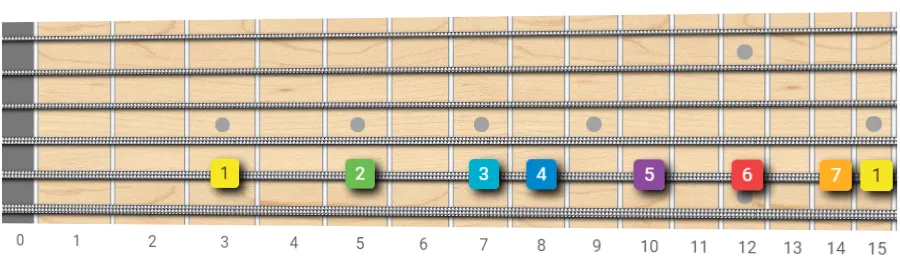

Let's see this example on the guitar: take the C note at the 3rd fret of the A string , and the C one octave upper, at the 15th fret of the same string.
A scale is a way to go from one note to the same note one octave upper
If you count the number of the frets between the lower C and the higher C, you get 12. So an octave spans 12 frets .
We have multiple ways to go from the lower C to the upper. We could play the 3rd, 5th, 7th, 8th, 10th, 12th, 14th, 15th frets, or play only the 3rd, 7th, 9th, 11th, 15th, or even play all the frets between the two C.
Of course, this holds true for ascending and descending both (from the lower C to the upper and from the upper to the lower)
The relationship between each fret generates the scale structure and thus its name. We can construct scales of all of the types: major, minor, pentatonic, harmonic minor, Whole-tone , Augmented , Lydian, Dorian, and so forth (there is even a Neapolitan scale). Each scale type has its own unique combination of distances between the frets in the octave.
Usually, there are eight notes to each scale within a one octave range.
Considering that the scale doesn't change with an octave change we don't need to repeat it past 8 notes.
A C scale will always end and start on a C, and the same for each successive note.
How To Read Scales Diagrams
Playing scales horizontally, on one single string, is a great way to visualize and understand the structures, but is impractical when it comes to making music, so usually, we use patterns that use all the strings.
Let's see how to read the scale diagrams that you'll find in this article. Have a look at the diagrams below, that shows you the C major scale
- The top line is always the first thinnest string, and the bottom line is the sixth and thickest.
- The diagrams show you the fretboard with the same point of view of a guitar player that is looking at the instrument.
- The colors of the note identify their degree (distance) from the root.
- The root is always in yellow.
- You must play one note at a time
Often, on the Internet, you'll find scale tabs. Tabs are of course far more popular than actually reading music because they use specific fret numbers of what to play.
Even better is if your fretboard diagrams or tabs come with finger patterns, as in exactly which fingering pattern is best while playing.

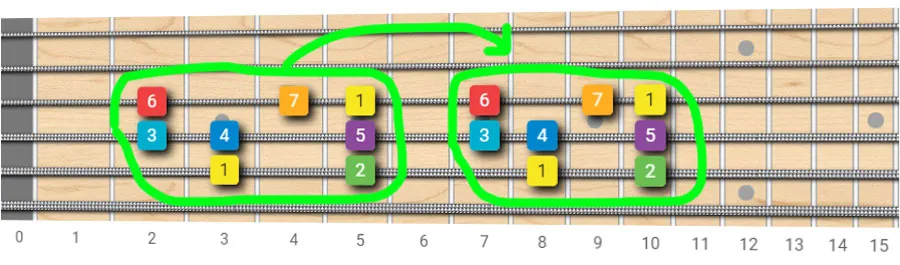

Scale Patterns are Movable!
Did you notice that the C major scale pattern above is just four frets? We call these shapes box patterns, usually, they span 4, 5 or 6 frets.
The reason why guitarists prefer to play scales along these box patterns are that the motion if more efficient: 1 finger for each fret (we're going to see this topic in the following)
The great thing about a guitar scales box is that it will work anywhere you place it on the guitar as long as you follow the pattern.
Each scale type has a specific box pattern which can be shifted to other keys. So, for example, if we want to play a D major scale , we move up the C scale pattern by two frets. Want an F major scale? Move the C pattern up by 5 frets!
To play the F major scale, we move the C major scale pattern five frets up, so that the root of the pattern (yellow note) is F
If you want to understand better how and why the frets are placed across the strings, have a look at the guitar notes tutorial .
Major Scale Fretboard Patterns
The most common and first scale to learn is the major scale. This very popular scale has the formula WWHWWWH , where the W equals a whole step (2 frets), and the H equals a half step (1 fret).
On a guitar, each fret is a half step away from the next, just as each piano key is also a half step apart. By taking the C note and applying this formula of whole and half steps we can find the C major scale;
C D E F G A B C
With this formula, you can find any major scale by just starting at the first or root note and counting each half or whole step.
C major scale pattern, 1 octave, root on the 5th string
C major scale pattern, 1 octave, root on the 3rd string
C major scale pattern, 2 octaves, root on the E low string
There are other possible patterns for the major scale, below in the article, you'll learn how to find them.
Major Pentatonic Scale Patterns
Not all scales will be eight notes long, in popular music you will often see the pentatonic scale , which is only five notes . Pentatonic scales were very popular among ancient civilizations across the globe.
They may be only five-note scales, but they are musically very powerful. To find the major pentatonic scale we use 1, 2, 3, 5, 6. of the C major scale;
C D E G A
C major pentatonic scale pattern, 1 octave, root on the 5th string
C major pentatonic scale pattern, 1 octave, root on the 3rd string
C major pentatonic scale pattern, 2 octaves, root on the E low string
Minor Scales
Another important group of scales is the Minor Scale. We can have different types of Minor Scales, let's see together:

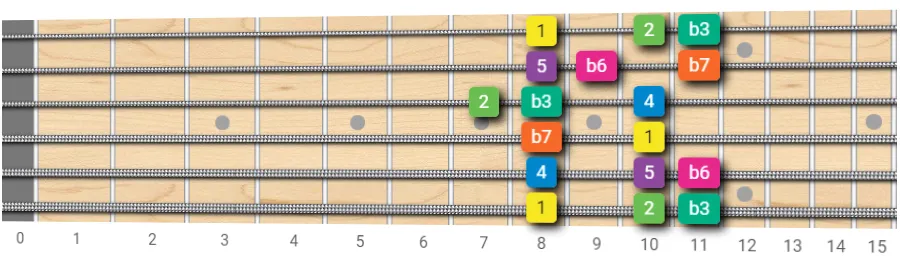

Natural Minor Scale
Now to make a natural minor scale we use the formula WHWWHWW. If we start from the A, we get the A minor scale
A B C D E F G A
The surprising thing is that the notes of the A minor scale are the same as the C major scale, but they are layed out in different order.
As previously said, the type of a scale (and then its sound) is determined by the distance between its notes.
A Natural Minor Scale on one single string
A Natural Minor Scale Guitar Pattern with root on the E lowest string
Why did we start from A?
Because A is the relative minor of C
The relative minor is taken from the sixth note of the major scale.
If we want to find the relative minor of any major scale, we can do that simply by count six notes from the root of the major scale (C D E F G A), or by looking at the Circle of Fifths .
Harmonic Minor Scale
The formula for the harmonic minor is WHWWH3H , that 3 in there represents three half steps (or 3 frets) until the next note in the scale.
If this is applied to every note, we will get the corresponding harmonic minor scale. A harmonic minor will be;
A B C D E F G# A
A Harmonic Minor Scale on one single string
A Harmonic Minor Scale with root on the E lowest string
Melodic Minor Scale
Another common minor scale is the melodic minor, with the formula WHWWWWH . The A melodic minor is:
A B C D E F# G# A
A Melodic Minor Scale on one single string
A Melodic Minor Scale with root on the E lowest string

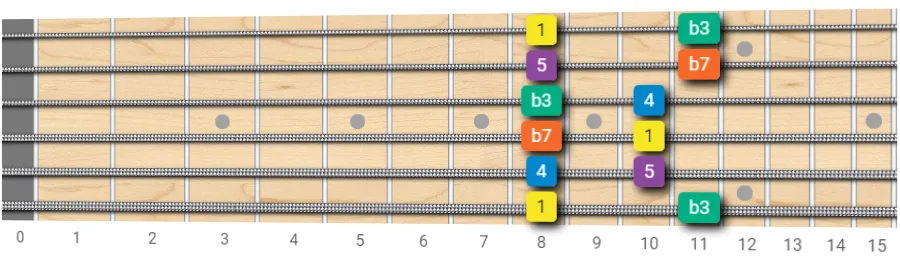

Pentatonic Minor Scale
As you would expect, there is also a pentatonic minor scale, the formula being 1, 3, 4, 5, 7.
Here's a popular 4 frets box:
A Minor Pentatonic 4 Frets Pattern

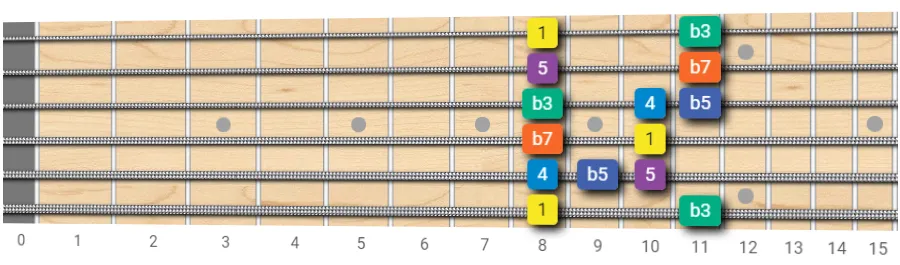

Pentatonic Blues Minor Scale
The Blues Scale is simply the Minor Pentatonic Scale with one more note: the diminished fifth (6 frets from the root). This note gives to the scale the Blues feeling that we all know.
The formula is: 1, 3, 4, b5, 5, 7
A Minor Blues Scale
There are many other scales to learn, the next logical step is to get familiar with Modal Scales.
Understand Chord Theory In an Easy and Visual Way

This table is part of the new ebook Chords Domination, an innovative resource that will teach you everything about how to create chords all along the fretboard.
Get a pdf with about 800 color-coded chord diagrams (with finger positions, note names and intervals), 44 chord tones fretboard maps and a nice chord structures visual table. Check it out:
Scale Pattern Shapes
There are different ways to play scales on the guitar. Due to the nature of the fretboard, we have multiple options for going from one note to the upper octave.
We could use only one string, moving our fretting hand horizontally, our we could use all of the strings. There are 3 popular fingering types that you should know:
4 Notes Boxes
This is the common method for beginners when first learning to play scales. There are four frets for each finger, keeping your scale in a nice box already to play without much hand movement.
Each finger frets the notes on the nearest fret (for example, index finger on fret 1, middle finger on fret 2, ring on fret 3, and the pinky on fret 4)
3 Notes Per Strings
This is a way of playing scale often used by heavy metal shredders, and fast picking guitar players. Basically, your fingerings have exactly 3 notes per string: this is useful for high-speed alternate picking and legato.
The picking patterns are equal on all the strings (down, up, down, next string and repeat) and this allows very efficient motion .
When you play with legato , you pick only the first note on each string; again this is efficient.
C major scale 3 notes per string pattern
Horizontally, on 1 single string
Scales boxes and patterns are useful, but when you'll advance in your guitar studies you could feel yourself trapped in these fixed schemes.
Playing scales horizontally, on one single string, allows you to gain more fretboard navigation freedom .
52 Chord Progressions | Learn How To Connect Chords and Create Great Songs

Do you know some chords, maybe many, but you're not sure how to play them together?
This ebook will show you 52 chord progressions, which are the foundation of many genres and styles of Western Music. Why 52?
The idea is to use this ebook for 1 year, studying thoroughly a chord progression each week, in all keys and chord voicings.
Before you know it you will be picking out progressions from songs on the radio!
Interactive Guitar Scales Finder
To further experiment with scales, fingerings, and keys, try our Guitar Scales Finder.
It's a free interactive tool that will help you learn you more than a hundred scales patterns. It's also available for left-handed guitar players , bass, ukulele and alternate tunings.
Guitar Scales Pdf Ebook
Finally, be sure to download the
Guitar Scales Patterns and Arpeggios Ebook
.
It's an handy reference pdf with tons of fretboard scale diagrams that you can print out.
You'll find the ebook in your free download area .
Exclusive For FaChords Readers: Guitar Lessons That Really Work - 14 Days Free
We have partnered with Guitar Tricks, the most popular Online Guitar Lessons website in the World, to give
you 14-Day
Free Trial Access
to their awesome learning platform.
You'll access a proven system that provides you with all you need to go from beginner to advanced level quick and easy.
2.5 million of people have already learned how to play the guitar with Guitar Tricks, you could be the next!
Other Cool Types Of Guitar Scales To Know
As you imagine, there exist tons of different guitar scales. To help you deepen your scales knowledge, we have created some tutorials specifically aimed at learning a given type of guitar scales. Check the list below:
Augmented Scale
This tutorial will show you how to play the augmented scale for guitar. You'll learn how this scale is constructed, and on which chords to play it. You'll also find the fretboard patterns for this scale in different positions..
The Whole Tone Scale
The whole-tone scale has a really particular sound. The post will shouw you when to use it and which chords fit well with it.
How To Play The E Harmonic Minor Scale
The Harmonic scale is commonly used in Jazz, Gipsy, Heavy Metal, and gives a little tension that can be used to spice up your songs and solos. This tutorial will teach you how to play the harmonic scale in the key of E minor
The Neapolitan Scale and its chords
A pretty uncommon scale, but really fun to learn. Jump to the Neapolitan scale tutorial
The E Minor Pentatonic Scale
The E minor pentatonic scale is easy to learn as it uses open strings. In the tutorial, you'll also learn how pentatonic scales are constructed, how to play them using open strings, and how to build riffs combining scales and power chords. Click here to learn the E minor pentatonic scale
Exotic Guitar Scales
Learn 8 exotic guitar scales that you can use to make your sound more interesting. Plus, you can download for free a pdf ebook with 40 exotic guitar scale patterns all along the fretboard.
The D Major Scale for Guitar
This tutorial will show you the most common patterns used to play the D major scale. You'll learn also the notes and the structure of this scale, plus some tips on the best way to play major scales on the fretboard.
Let the power of scales be with you!
To stay updated on new tutorials, subscribe to the free newsletter (you'll also get access to the download area with many free printable resources)
Share with your fellow guitar players!
