Ab9b5 Guitar Chord | Play, Hear and Practice Interactively
Searching for plain A9b5, without the flat? It has its own page: A9b5.
The Ab9b5 chord (Ab ninth flat five) is spelled Ab, C, Ebb, Gb and Bb. The Ebb is a double flat, the same pitch as D, and the Bb is the ninth. The Gb is the minor seventh.
The three listed voicings are barre shapes starting at the 3rd fret. The sound matches G#9b5, its sharp-spelled twin. The distances between the notes show up clearly in interval shapes across the strings, and the Ab Lydian dominant scale contains all five.
The player shows each note labelled, so you can see where the Ebb falls.
Ab 9th with flat 5th guitar chord is also written as Ab9b5, Ab9(b5) or Ab9-5.
Ab9b5 Chord Notes and Formula
Notes in the Ab 9b5 chord:
Tones in the Dominant Ninth Flat five chord:
Formula: 1 3 b5 b7 9
Same chord, different name: Ab9b5 is also written as G#9b5 (G# ninth flat five).
Ab9b5 Chord Interactive Fretboard
Want a structured chord roadmap instead of jumping between pages?
Go to the full guitar chords tutorial.
Ab9b5 Guitar Chord Diagrams

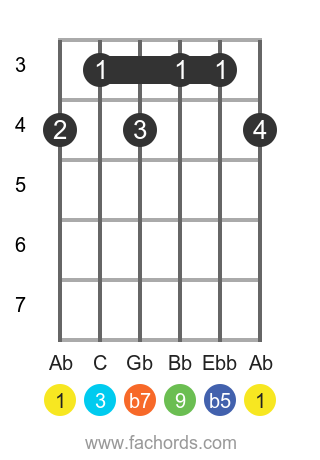

Position 1 Barre Movable
Ab Ninth Flat Five Finger Positions
- Place your index finger (1) on the fret 3 of the A, G and B strings at the same time
- Place your middle finger (2) on the fret 4 of the low E string
- Place your ring finger (3) on the fret 4 of the D string
- Place your pinky finger (4) on the fret 4 of the high E string

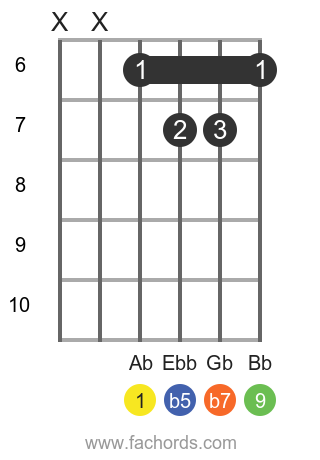

Position 2 Barre Movable
Ab Ninth Flat Five Finger Positions
- Mute the low E string
- Mute the A string
- Place your index finger (1) on the fret 6 of the D and high E strings at the same time
- Place your middle finger (2) on the fret 7 of the G string
- Place your ring finger (3) on the fret 7 of the B string

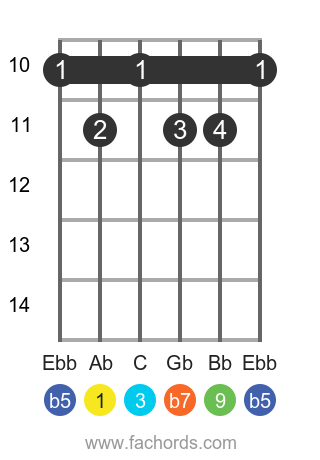

Position 3 Barre Movable
Ab Ninth Flat Five Finger Positions
- Place your index finger (1) on the fret 10 of the low E, D and high E strings at the same time
- Place your middle finger (2) on the fret 11 of the A string
- Place your ring finger (3) on the fret 11 of the G string
- Place your pinky finger (4) on the fret 11 of the B string
Find more shapes in our all guitar chords online library. If you
prefer a printable pdf, download
the Free Guitar Chords Chart Pdf
Chords That Go With Ab9b5
One key where Ab9b5 fits is Db major, where it works as the V chord, an altered chord whose Ebb is borrowed from outside the key. These are the main chords of that key, the ones you will often hear around it:
See every key in the guitar keys chart, or build a progression with these chords in the chord progression generator.
More Ab Chords
Want to know how this chord is built? Read ninth and add9 chords explained, or browse all Ab guitar chords.
FAQ
What notes are in Ab9b5?
Ab9b5 is Ab, C, Ebb, Gb and Bb. The Ebb is the lowered fifth and the Bb is the ninth.
Why does Ab ninth flat five include Ebb?
The fifth over Ab uses the letter E, and a diminished fifth is a semitone under the perfect fifth Eb. That gives Ebb, which sounds like D.
Is Ab9b5 the same as G#9b5?
Yes. G#9b5 spells the pitches G#, B#, D, F# and A#. Each spelling has one awkward note, Ebb in Ab9b5 and B# in G#9b5.
How many voicings does Ab9b5 have?
There are 3 voicings, from fret 3 to fret 11. All 3 are barre voicings and none uses an open string.
Which scale goes with Ab9b5?
The Ab whole-tone scale is Ab, Bb, C, D, E and Gb. It holds all five chord pitches, with the chord's Ebb sounding as the scale's D.
