Eb Harmonic Minor, Shape by Shape

Eb, F, Gb, Ab, Bb, Cb and D make up the Eb harmonic minor scale. The Cb is simply B on the fretboard, and the D natural is the raised 7th, a half step below the root.

The first box sits at the 11th fret of the low E string, and a second root waits on the 6th fret of the A string. D# harmonic minor is the sharp twin, though its double sharp makes Eb the neater choice. For ideas on moving between boxes, try diagonal scale patterns.

Play the Eb harmonic minor scale

Use the step menu in the player to switch between the single-string run and the box shapes.

Notes of the Eb harmonic minor scale

NoteDegreeIntervalSemitones from root
Eb1Root0
F2Major 2nd2
Gbb3Minor 3rd3
Ab4Perfect 4th5
Bb5Perfect 5th7
Cbb6Minor 6th8
D7Major 7th11

Structure

Eb harmonic minor scale notes:

Eb F Gb Ab Bb Cb D

How the harmonic minor scale is built:

The harmonic minor scale is built from the degrees 1 2 b3 4 5 b6 7, which gives the step pattern W-H-W-W-H-W+H-H (W = whole step, H = half step).

Counting in semitones from the root: 0, 2, 3, 5, 7, 8, 11. That makes it a 7-note scale.

It is the parent scale of its own modal family.

It is also known as Aeolian Maj 7.

Eb Harmonic Minor Scale Guitar Patterns

Static diagrams of every position shown in the player above.

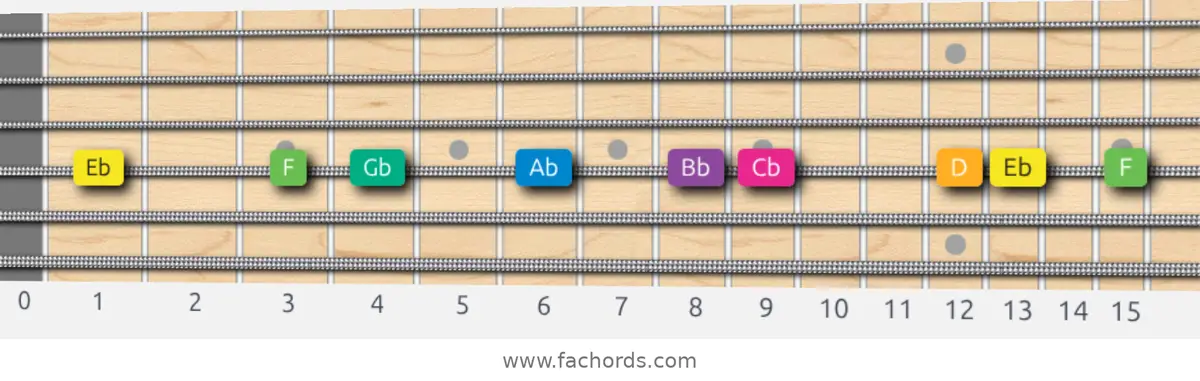

Eb Harmonic Minor Scale scale guitar pattern - On one string (D)

On one string (D)

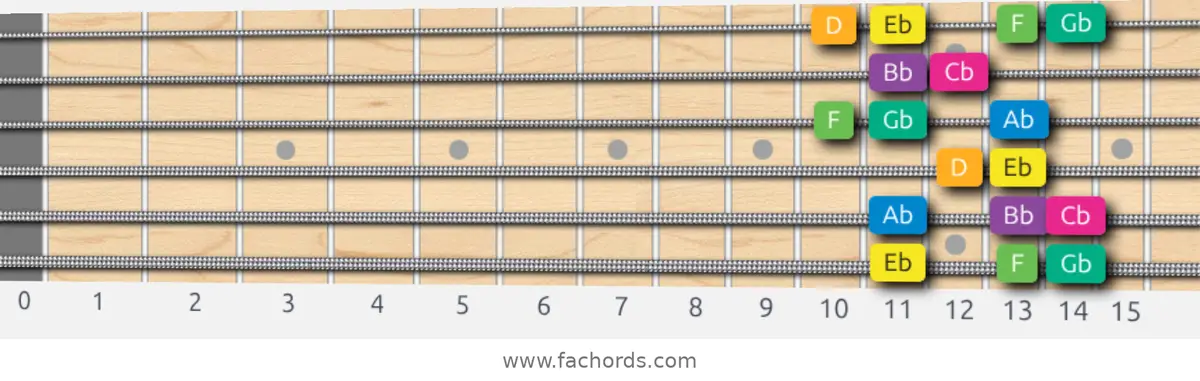

Eb Harmonic Minor Scale scale guitar pattern - Box pattern — position 1

Box pattern — position 1

Eb Harmonic Minor Scale scale guitar pattern - Box pattern — position 2

Box pattern — position 2

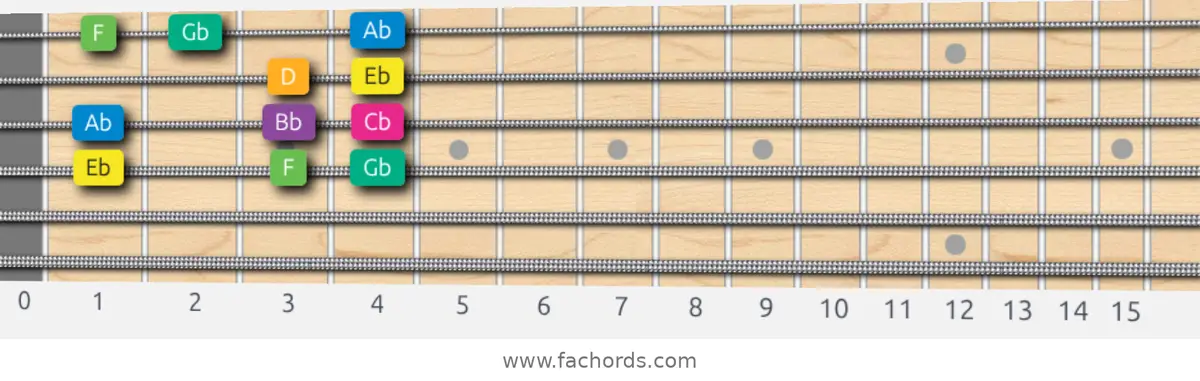

Eb Harmonic Minor Scale scale guitar pattern - Box pattern — position 3

Box pattern — position 3

Eb Harmonic Minor Scale scale guitar pattern - Box pattern — position 4

Box pattern — position 4

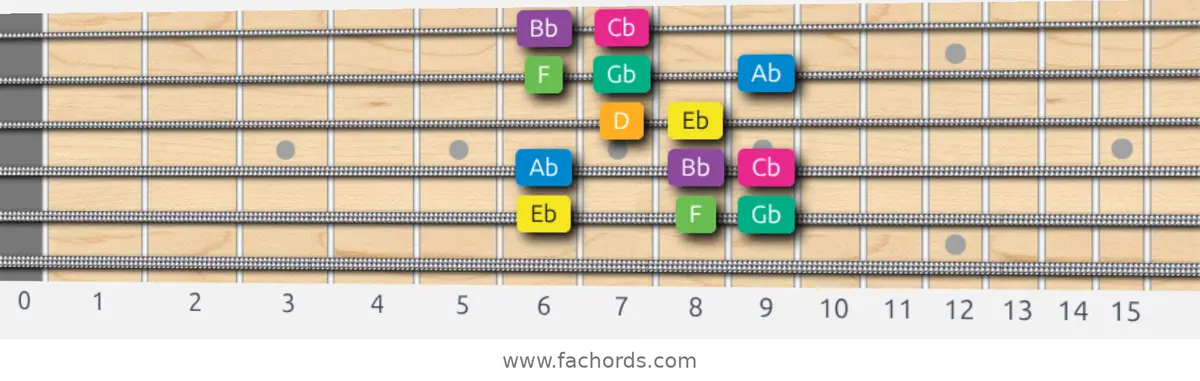

Eb Harmonic Minor Scale scale guitar pattern - Box pattern — position 5

Box pattern — position 5

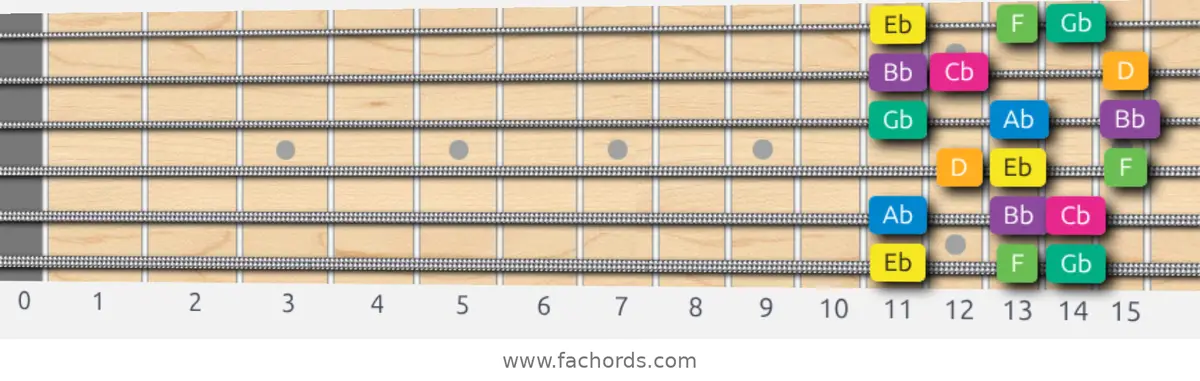

Eb Harmonic Minor Scale scale guitar pattern - 3 notes per string — position 1

3 notes per string — position 1

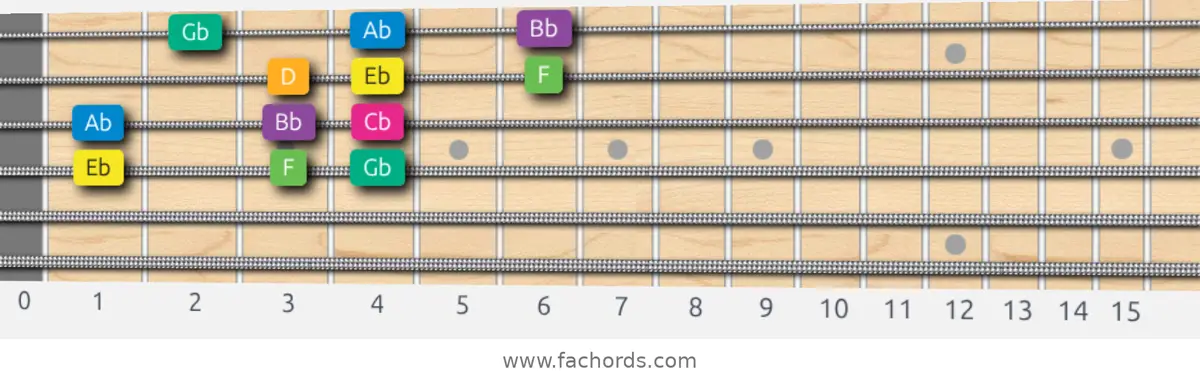

Eb Harmonic Minor Scale scale guitar pattern - 3 notes per string — position 2

3 notes per string — position 2

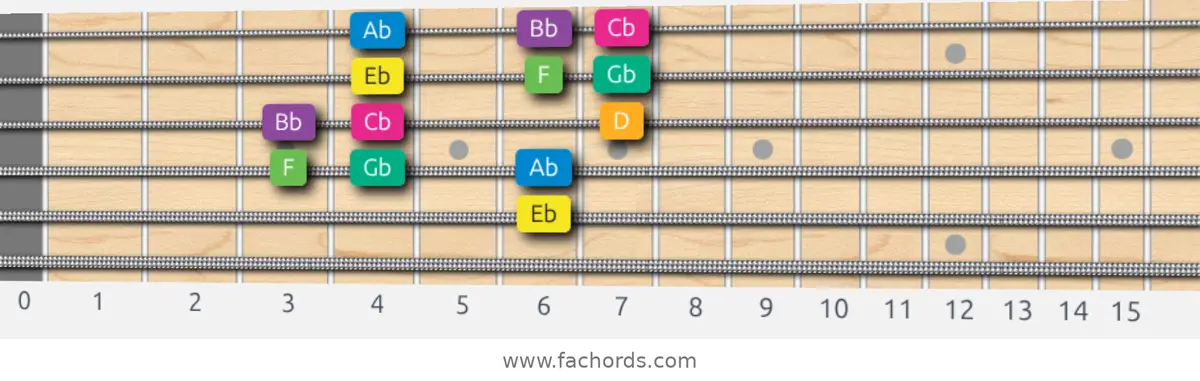

Eb Harmonic Minor Scale scale guitar pattern - 3 notes per string — position 3

3 notes per string — position 3

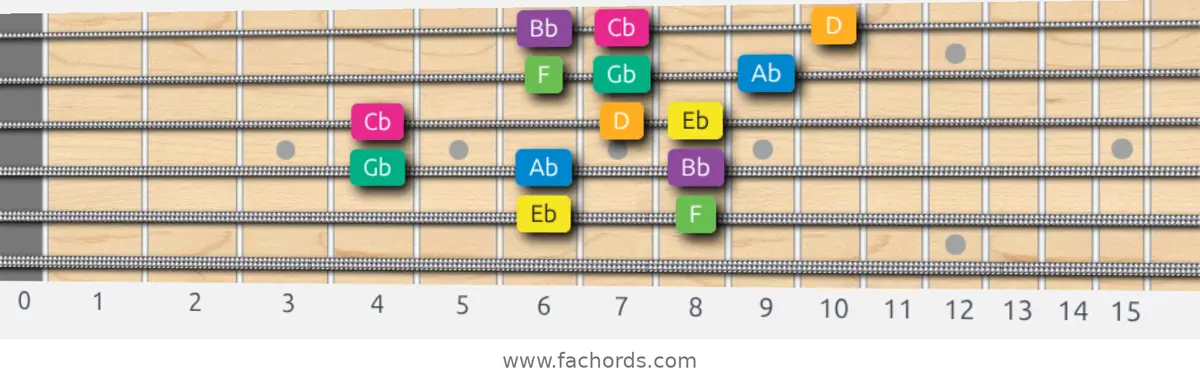

Eb Harmonic Minor Scale scale guitar pattern - 3 notes per string — position 4

3 notes per string — position 4

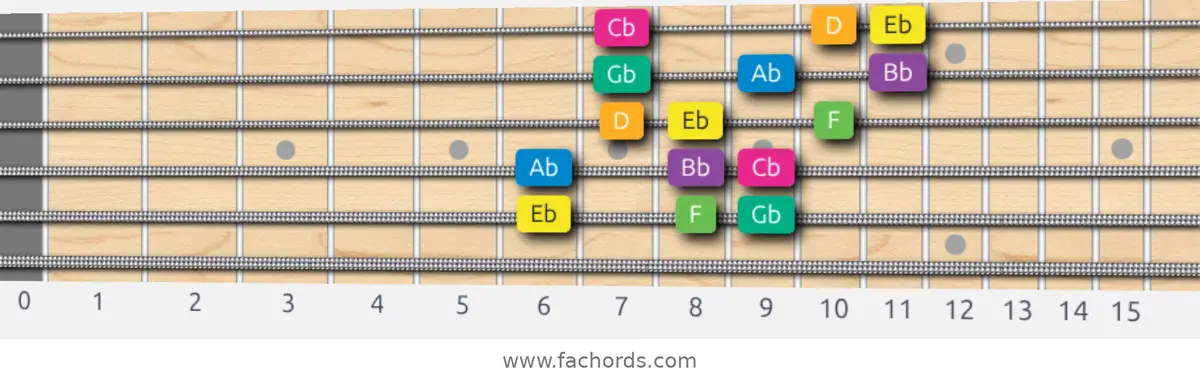

Eb Harmonic Minor Scale scale guitar pattern - 3 notes per string — position 5

3 notes per string — position 5

Chords in the Eb harmonic minor scale

Stacking thirds on each degree of the scale gives these chords.

DegreeTriadSeventh chord
1 Ebm Ebm(maj7)
2 Fdim Fm7(b5)
b3 Gbaug Gbmaj7(b13)
4 Abm Abm7
5 Bb Bb7
b6 Cb (same as B) Cbmaj7 (same as Bmaj7)
7 Ddim Ddim7

Scales with the same notes as Eb Harmonic Minor

These scales use exactly the same notes. Each one starts somewhere else, so the root and the mood change.

Other scales on Eb

Same root, different notes. Play them back to back to hear what changes.
