Guitar Triads: complete tutorial

How to play triads on guitar: major, minor, diminished and augmented

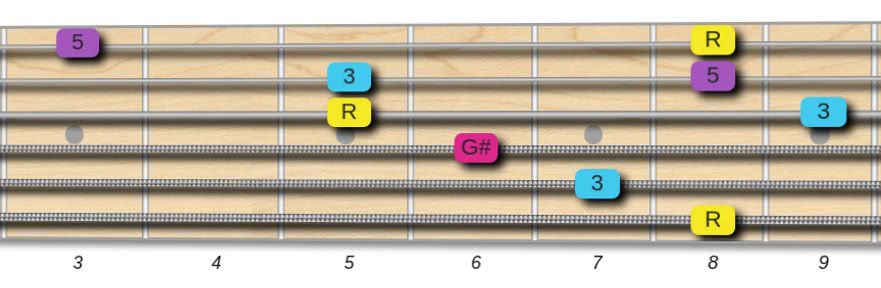

guitar triads tutorial

In this tutorial, we're going to learn a cool music concept that every guitar player should have in his/her arsenal: TRIADS! Triads are useful in a lot of different situations: constructing new chord shapes, soloing, melody composition. If you already know your fretboard notes, learning triads on the guitar will expand incredibly your fretboard knowledge, and will help you express more freely on the instrument. So, let's start and see what are triads and how to use them in our music.

In music theory chords are represented by a harmonic set of three or more notes. These simplest three note chords are known as triads; they form much of the basic building blocks of western music. During this article we will breakdown the science of guitar triads: how to play triads on guitar, how to find triads shapes on the fretboard, and why it is so important to learn them.

In the late Renaissance music relied heavily on counterpoint techniques, which focused on melodic interactions, and less on harmonies. With the rise of the triad, music became more oriented towards the specific and simultaneous soundings of particular notes, i.e. chords. Regardless of the musical scale we play in, when we follow the rules of triads, we will have pleasant sounding chords and harmonies on our guitar!

What is a triad

C major triadOk, triads seem to be cool, but what they really are? A triad is a set of three notes that can be stacked in thirds, lets use the simplest musical scale of C to break this all down. A major triad is made up of the 1st or root note, the 3rd note, and the 5th note of a scale. The C major scale consists of the notes:

C D E F G A B C

Using this scale we will find the notes of the C major triad:

C D E F G A B C

The root and 1st note is of course C the 3rd note as we count up the scale is E and the 5th note is G which makes the C major triad or C major chord C-E-G. It is ok to label this interval either way, or even to simply call it the C chord.

Why you should learn your guitar triads

Beyond expanding your knowledge of the guitar fretboard there are a couple of major benefits to triads.

1) Triads are useful for riffs and melodies

Arpeggio’s, melodies, and riffs are all often composed using triads and their different shapes. An arpeggio is playing a chord one note at a time as opposed to all at once, it can be played slowly or quickly, and in any order you want.

Instead of playing that 5th fret C major triad all at once, try plucking each string quickly one after another. Arpeggios can sound beautiful like a harp solo, or they can sound like heavy metal when played fast enough (with some more distortion too!).

The three notes of each triad, the root, third, and fifth position make up much of the basic harmonies of all pop, folk, and rock music out there. By just playing these triads in various positions on the guitar, you will have the chops to play in a simple band.

2) Triads are a great foundation for more complex chords

Over time you will want to expand on your triads, but you would be surprised how great you can sound with just the 3 note major and minor chords. Many guitarists use these shapes to come up with new riffs, melodic lines, and of course for soloing. Let’s say your band has 8 bars of repeated chords C, G, and F... for a simple solo you can play each note in the triad of the chord you are in.

This is a great way to learn to solo and improvise, it is hard to go wrong with the notes in the basic triads of each chord!

Major, minor, augmented and diminished triads

We can also use the terms of half-steps and whole-steps to describe a triad. If you take a moment to pick up your guitar you can get a better idea of this method. Each fret on the guitar is a half step up from the last, if we move up two frets than that of course is a whole step.

Depending on the distance between the notes composing the triad, we can have different triad types, each one with its own unique feeling. Have a look at the chart below:

Major triad 1 3 5

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

Minor triad 1 b3 5

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

Diminished triad 1 b3 b5

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

Augmented triad 1 3 #5

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

As you can see in the triads chart above, there exists 4 types of triads: major, minor, augmented and diminished.

  • A major triad is composed by stacking a major third (2 steps) and a minor third (1 and a half steps).
  • A minor triad is composed by stacking a minor third (one and a half steps) and a major third (2 steps).
  • 2 stacked minor thirds (1 and a half step) form a diminished triad.
  • An augmented triad is created by stacking 2 major third (2 steps) one on the of the another.

To create the C major triad using steps we start with the root note of C and move up two whole steps to get E and then we move up one half step and one whole step to get to G. That is the formula for all major triads or major chords on any instrument, we find the root take two steps up to the 3rd and then one and a half steps to the 5th.

Constructing Major Triads

Using this simple formula for major triads we can find any basic major chords necessary. Let’s say we want to find the G major triad, well the G major scale is:

G A B C D E F#

G major triadThe root note is G the 3rd is B and the 5th is D and if we look on the guitar fretboard we will notice that the same formula works again; two whole steps up to the 3rd with a half step plus a whole step to the 5th.

If all of that seems a little confusing, just take a moment away from reading and spend some time studying your fretboard. Try forming different major triads for other scales, and be sure to check your progress. Next we will move on to minor triads... and if you have any frustration over music theory.

Remember there is method to all this madness. By understanding the concepts of these triads your playing, skills, and even your ability to compose and solo will be greatly enhanced.

Minor triads

C minor triadSay we are playing a C major triad on our guitar, now we all know that major chords are often used for an uplifting and rocking feeling, but let’s say we want to change the mood of that chord. How do we play the C minor triad/chord? Well of course we could just look it up, but it is a huge time saver to remember that a minor triad simply has a flattened 3rd note!

Before we had the C major triad made up of the 1-3-5 interval, which was C-E-G, now when we flatten the third note we get C-Eb-G, the C minor triad! It is really that simple as 1-3b-5. Jumping from the major to the minor is simply cutting back a half step on the third note.

Now if we use the step method, a minor triad is one half and a whole step from the first to the third, and two whole steps from the third to the fifth. Each time, with every single scale we pick, the minor triad or chord, will always be this same formula. Above we mentioned the G major triad, so what would the minor be? After flattening the third it is G-Bb-D!

With knowing how to form all basic major and minor triads, our musical world has opened up immensely. Now let's see the remaining triad types, diminished and augmented triads.

How to create diminished triads

C diminished triadWhen you first hear a diminished triad played you will immediately notice how dramatic and even eerie it can sound. A diminished triad is simply a minor triad with a flat 5th. It is made up of the root note, a flattened 3rd, and a lowered or diminished 5th, thus a C dim chord will consist of C-Eb-Gb. There are a few different ways to notate this triad either as C diminished, C dim, or Cb5. Below is one of the many examples of where to find this diminished triad on your guitar.

Certain triad shapes are perfect for learning multiple chords on the guitar. Let’s take the C dim shape above and move it two frets up, the notes will now be D-F-Ab, which is a D diminished chord. As long as we stick to this same shape up and down the fretboard we will have a variety of diminished chords.

The diminished triad is most often used as an approach chord, waiting to be resolved by moving the 3rd and 5th one half step up. Play the notes C-Eb-Gb and then move to C-E-G and you will see how nice this resolution sounds, it has an unstable quality just waiting to be wrapped up nicely. Now, before we get into any specific examples let’s take a look at augmented triads.

Building augmented Triads

C augmented triadAn augmented chord is a major triad with a raised 5th. So a normal C major C-E-G becomes the augmented or raised C-E-G#. This triad can be notated as C augmented, C aug, or C+, like diminished triads they also have an unstable sound and are often looking to be resolved to another chord. A great example of a C+ triad shape is:

Just like the diminished triad above we can move this shape up and down the guitar, always getting an augmented triad. In fact, if we use the diminished triad shape we learned from above we can move that up to the regular C major triad and then raise the fifth up to the augmented C. I personally like how it sounds to play the triad or chord progression:

C aug C maj C-dim C maj

Because these chords have a bit of dissonance they are often used for a very short time, perhaps in passing for one beat or maybe one bar. They work best as a leading tone into another chord, quite often the root or tonic. These augmented and diminished chords create an anticipation and transition between normal major and minor triads. They are to be used sparingly in most cases, a little goes a long way! Sometimes songwriters also use these augmented and diminished chords to modulate between different keys in a song.

Guitar triads shapes

Many stringed instruments have specific triad shapes to be used and memorized while playing. It is a helpful way of always knowing where to find the basic notes of any chord. Before we mention a couple of these specific triad shapes, we first must comment on inversions. Inversions deal with the relationship to the bass note of the triad.

How to play triads on the guitar fretboard

It will take some initial memorization of these triads when you first start to learn them. Pick a major triad shape and make sure you play the root, third, and fifth, and pay attention to which inversion you are playing.

Once you have the shape down move it up and down the fretboard calling out each chord as you come to it. Continue to also practice this with minor triad shapes in all their forms. To help you memorize triads shapes, we have create an interactive tool, the Fretboard Cyber Trainer, use this software tool to help you get started on the variety of triad shapes to learn and memorize fretboard intervals (the tool allows you to practice on all intervals kinds, such as 7th, 4th, 9th and so forth. If you're learning triads, you've just to master 3rds and 5ths)

A note about inversions

1) Root position

  • G Fifth
  • E Third
  • C Root

In a regular C major triad, the note order is C-E-G, with the C note being the bass note of the chord. This chord is in its root position.

2) First inversion

  • G Fifth
  • C Root
  • E Third

Sometimes we play a C chord shape on the guitar where the notes are arranged as E-C-G, this is still a C major triad, but it is known as the first inversion.

3) Second inversion

  • C Root
  • E Third
  • G Fifth

If we have the G as the bass note, this is the second inversion. These inversions allow us to play the same triad in different positions and allow for different musical voicing’s.

There are a plethora of triad shapes out there, below are just some examples starting with the root note on each string.

Major triads shapes

guitar major triad sixth string

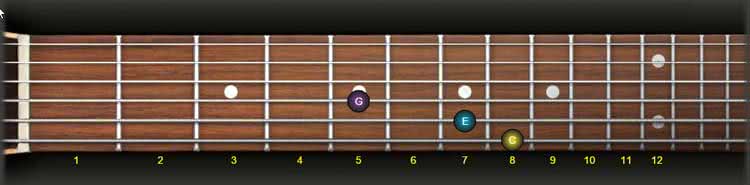

C major triad with root on the sixth string

guitar major triad fifth string

C major triad with root on the fifth string - position 1

guitar major triad fifth string

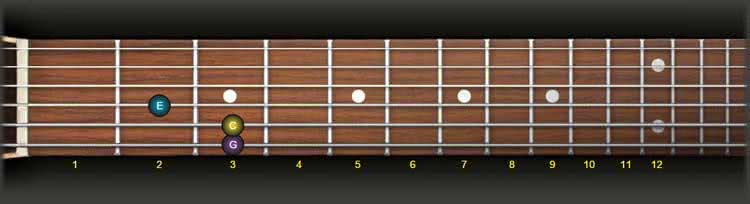

C major triad with root on the fifth string - position 2

guitar major triad fourth string

C major triad with root on the fourth string - position 1

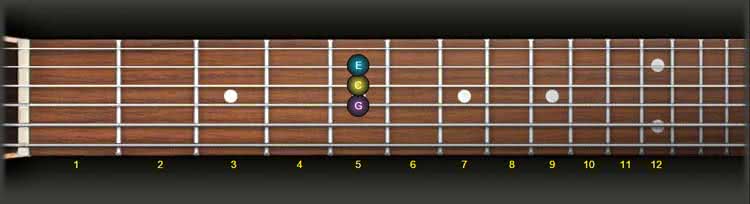

guitar major triad fourth string

C major triad with root on the fourth string - position 2

guitar major triad fourth string

C major triad with root on the fourth string - position 3

guitar major triad third string

C major triad with root on the third string - position 1

guitar major triad third string

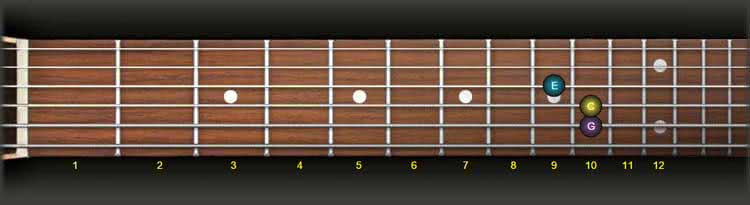

C major triad with root on the third string - position 2

guitar major triad third string

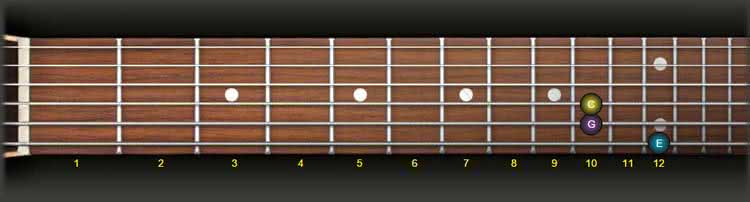

C major triad with root on the third string - position 3

guitar major triad second string

C major triad with root on the second string - position 1

guitar major triad second string

C major triad with root on the second string - position 2

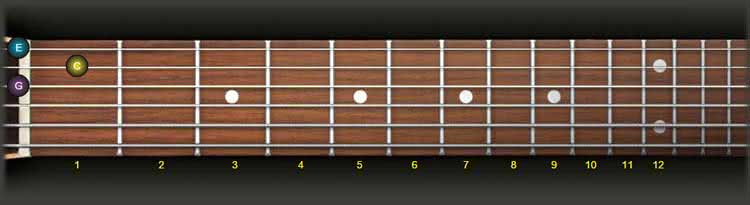

guitar major triad first string

C major triad with root on the first string

You will notice some of the them are a little easier to play than others, of course the ones that are the easiest to play will be the more popularly used shapes. One of my favorites happens to be the major triad shape made when the root note C is on the 3rd string.

Notice in this triad shape the G is actually the bass note, making this shape a 2nd inversion of the C major chord. However, I choose this particular triad formation because it allows us to see what is so great about these major triad shapes. Pick your guitar up and play these exact three strings on the 5th fret, you will of course have a C major.

Now move this same shape down one fret, you will have a B major triad or chord, one fret further up, and we have a C# major triad. This exact shape will always form a chord on each fret as long as the fingers are kept in the same position. And this goes for every triad shape out there, as long as you follow the same patterns up and down the fretboard, you will have specific corresponding chords.

Minor triads shapes

There are also minor triad shapes, and since minor triads are simply a flattened 3rd of the major triads, you can guess their shapes will not be a drastic change from the majors. By learning as many of these as possible you expand your fretboard knowledge and will be able to build your own chords without constantly looking at a chord dictionary. Of course triads can eventually be built on to make bigger chords, but in the beginning let’s get our major and minor shapes down and practiced.

guitar minor triad sixth string

C minor triad with root on the sixth string

guitar minor triad fifth string

C minor triad with root on the fifth string - position 1

guitar minor triad fifth string

C minor triad with root on the fifth string - position 2

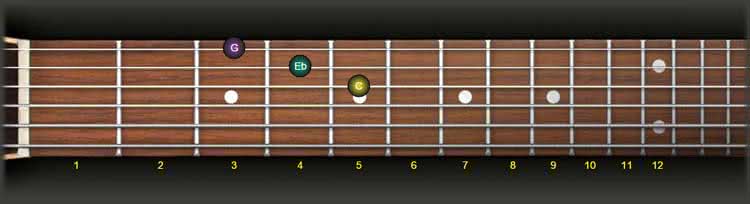

guitar minor triad fourth string

C minor triad with root on the fourth string - position 1

guitar minor triad fourth string

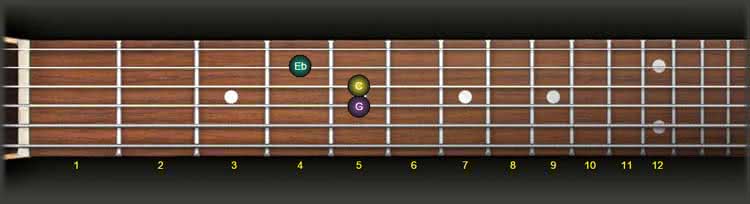

C minor triad with root on the fourth string - position 2

guitar minor triad fourth string

C minor triad with root on the fourth string - position 3

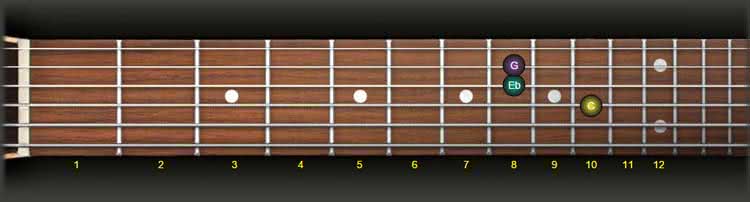

guitar minor triad third string

C minor triad with root on the third string - position 1

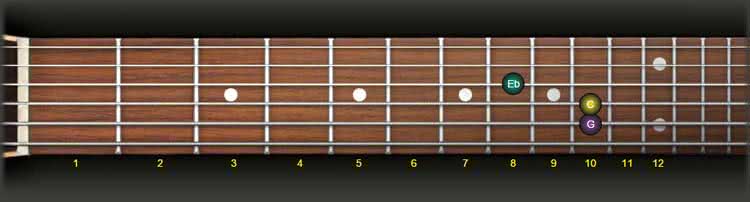

guitar minor triad third string

C minor triad with root on the third string - position 2

guitar minor triad third string

C minor triad with root on the third string - position 3

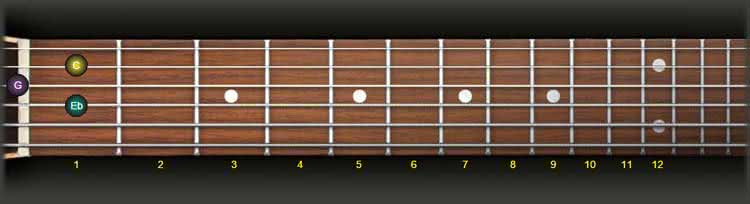

guitar minor triad second string

C minor triad with root on the second string - position 1

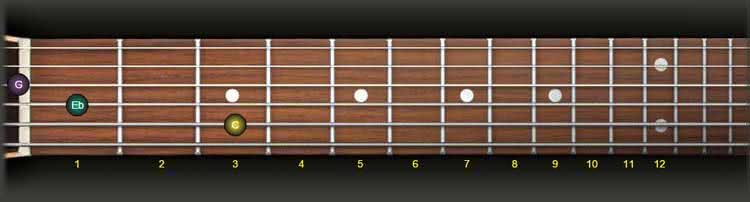

guitar minor triad second string

C minor triad with root on the second string - position 2

guitar minor triad first string

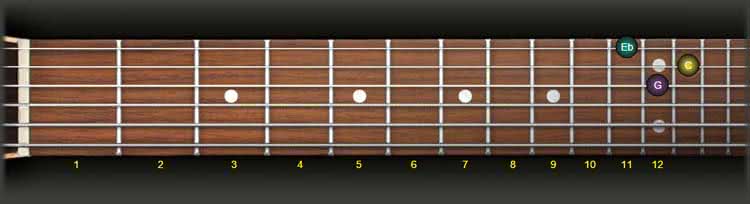

C minor triad with root on the first string

Guitar Triads Shapes - Complete List

Fretboard Shapes for Major Triads

fretboard guitar shape for major triad position 1
fretboard guitar shape for major triad position 2
fretboard guitar shape for major triad position 3
fretboard guitar shape for major triad position 4
fretboard guitar shape for major triad position 5
fretboard guitar shape for major triad position 6
fretboard guitar shape for major triad position 7
fretboard guitar shape for major triad position 8

Fretboard Shapes for Minor Triads

fretboard guitar shape for minor triad position 1
fretboard guitar shape for minor triad position 2
fretboard guitar shape for minor triad position 3
fretboard guitar shape for minor triad position 4
fretboard guitar shape for minor triad position 5
fretboard guitar shape for minor triad position 6
fretboard guitar shape for minor triad position 7
fretboard guitar shape for minor triad position 8

Fretboard Shapes for Diminished Triads

fretboard guitar shape for diminished triad position 1
fretboard guitar shape for diminished triad position 2
fretboard guitar shape for diminished triad position 3
fretboard guitar shape for diminished triad position 4
fretboard guitar shape for diminished triad position 5
fretboard guitar shape for diminished triad position 6
fretboard guitar shape for diminished triad position 7
fretboard guitar shape for diminished triad position 8

Fretboard Shapes for Augmented Triads

fretboard guitar shape for augmented triad position 1
fretboard guitar shape for augmented triad position 2
fretboard guitar shape for augmented triad position 3
fretboard guitar shape for augmented triad position 4
fretboard guitar shape for augmented triad position 5
fretboard guitar shape for augmented triad position 6
fretboard guitar shape for augmented triad position 7
fretboard guitar shape for augmented triad position 8

Building On Our Triads

Extending major and minor triads

Now once we have the basics of the major and minor down, we can begin to build more on our chords. Remember that the major triad is the root or first note, the third, and the fifth... beautiful music occurs when we start to stack more notes onto these original three.

Cmaj7 Chord

Take the C major chord of C-E-G, let’s add the 7th note ofB. We get a chord called Cmaj7 which sounds great in jazz, or gospel, and many other genres:

Cmaj7 chord 1 3 5 7

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

C dominant Chord

C7 chord 1 3 5 b7

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

If we take that 7th and flatten it (a minor 7th) we get C-E-G-Bb, which is a C7. Seventh chords like those are the backbone to many oldies rock tunes and are found in a variety of other styles.

C6 chord 1 3 5 6

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

Or we can add the 6th not to C-E-G which is A. This is known as the C6 chord. C6 is the tuning of lap steel guitars and ukuleles, so that chord can often give that island Hawaiian sound.

More chords

It seems there are near endless ways to stack more notes onto our major and minor triads, including 9ths, 11ths, and 13ths! Of course once we start stacking too many notes we run into some problems on a guitar. We only have 6 strings so once we stack to high we have to decide which notes to leave out. On a piano it is easier to hit all the necessary notes, but on a guitar you will find you have to leave something out on those 13th’s!

It will not be overnight that you will be playing these more complicated chords. It still helps though to understand this basic note stacking principle. Once you practice and study your major and minor triads, you will find more difficult chords falling into place. While it may not seem like it at first this simple aspect of music theory will slowly help you master the guitar.

Over time you will increase your ability to solo, comp, create melody lines, and even arpeggiate a backing rhythm. Major and minor triads are a must in your journey to be the best guitar player you can be!

Extending augmented and diminished triads

C augmented 7th chord

Caug7 chord 1 3 #5 7

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

Just like our major and minor triads our diminished and augmented chords start to really open up when we stack more notes onto them. For example, we can add a major 7th to the C aug chord, giving us the notes C-E-G#-B.

C augmented 9th chord

Or we can get a little more complicated and create a C augmented 9th chord. The formula for a regular C9 chord is 1st, 3rd, 5th, flattened 7th, and a 9th by raising the 5th we will create the Caug9 C-E-G#-A#-D.

Diminished and half-diminished 7 chords

C half diminished chord 1 b3 b5 b7

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

Diminished chord 1 b3 b5 bb7

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
8

When we build upon diminished triads we also have what is known as a half-diminished chord.

  • The formula for a C half diminished 7th is C-Eb-Gb-Bb
  • A regular diminished 7th is C-Eb-Gb-Bbb.

As you notice the half diminished is a half-step down while the regular diminished is a whole step.

These two chords have very different sounds and notations, however they are both built off the diminished triad we learned above. There are almost endless ways to build on your triads. Once you have the basics down of major, minor, augmented, and diminished triads, we can use these notes and chord shapes to create new and complicated sounds in our musical compositions.

Some Popular Examples

Songs with major and minor triads

Hopefully now you have the basics down for major and minor triads, how to form them, what they mean, and what they can do. However, it is always helpful to have some ideas of what others have done with these simple 3 stacked notes. Of course there are a bazillion songs out there that use triads and arpeggios.

"Stairway To Heaven" - Led Zeppelin

So let’s pick one of the more famous pieces out there to give a great example, the song by Led Zeppelin "Stairway To Heaven"

Now awhile back in the news there was a story that perhaps the opening riff to Stairway was borrowed from another band.

Of course all musicians are known for doing this, and there seems to be some striking similarities, but we are not here to point out these potential legal discrepancies, we want to point out how that amazing intro was simply triads being played. It starts with an A minor triad, followed with arpeggiated major chords like G#, C, D, and there is even a major seventh stacked onto an F triad!

There almost could not be a more famous example of how useful, popular, and great sounding major and minor triads can be! The next time you play or listen to that song, remember, triads are just plain terrific!

Augmented and diminished triads applications

"For Once In My life" - Stevie Wonders

One great example of a song that includes both augmented and diminished triads happens to be Stevie Wonders song “For Once In My Life” The chord progression of the verse in this song is:

C C+ C6 C#dim7

He first starts with the C chord, jumps to the augmented C, moves up to the C6 and then to the diminished 7th of the C#. These chords are great at building a little bit of musical tension and sounding like a perfect mix of pop rock and jazz. Other examples of songs using C major and C augmented chords are John Lennon’s “Starting Over” and “Baby Hold Onto Me” by Eddie Money

Christmas Songs

To find some examples of diminished chords one needs to look no further than Christmas tunes. Jingle Bell Rock, Let It Snow, Little Saint Nick, Winter Wonderland, and more all have diminished 7th chords in them. In fact, so many tunes from the 20’s and 30’s have these diminished 7ths that it is known as the “diminished cliché”.

The best way to use these dim 7 chords are to jump a half step up from the chord you start at. Instead of playing Cmaj and then Dmin, try Cmaj to C#dim7 and then to Dmin. The latter sounds far better and will increase your musical palette.

The Beatles

You will find the best songwriters use augmented and diminished triads to “pepper” their music with more sonic layers. The Beatles often use these triads in their music. It doesn’t take much to really change or add to the sound of a simple chord progression. Their song “Oh Darling” starts out on an Eaug7 chord, that is made up of E-G#-C-D. A regular E chord is E-G#-B, just think how different that song would be if they played a regular Emaj instead of the Eaug7. That augmented 7th is only played for one bar but really creates a bit of initial musical tension leading into that song.

There are plenty more examples out there of augmented and diminished triads. By practicing the specific triad shapes you will become more familiar with how they sound, eventually you will be able to listen to your favorite music and pick them out. Remember the purpose of augmented and diminished triads is to create a dissonance and instability that must be resolved into a better sounding chord!

Guitar Triads: further resources

This concludes our journey into the fascinating world of triads and harmony. Actually, learning triads is just the beginning: there are a lot of interesting things you can do, such as adding another tone and creating seventh chords, and so forth. Here below you find more resources that will help you understand better guitar triads and the fretboard.

  • Lessons series on fretboard theory, that will help understand better how the fretboard logic
  • Learning software for practicing fretboard intervals, it will help you internalize fretboard geometry

Did You Already Download The Free Ebooks?

Get Pro Lessons At Home: Review Guide

best online guitar lessons

If you want to get your musicianship to the next level and freely express yourself on the guitar, check the guide with the most popular online courses that have proven to work awesomely.

Learn More Here

Is this helpful?
Share with your fellow guitar players!

Related posts:

Improve your fretboard knowledge with one simple exercise

Improve your fretboard knowledge with one simple exercise article icon

In this article you'll learn an amazing, quick and simple exercise that will completely turn upside-down your fretboard knowledge, and improve the way you play guitar. It's all about breaking the cage of a vertical vision of the fretboard... Read more

Guitar Fretboard Chart | Free Neck Diagrams Pdf

Guitar Fretboard Chart | Free Neck Diagrams Pdf article icon

Here's a pdf chart of the guitar fretboard notes that you can download for free. It contains the neck notes diagrams for each musical key, with natural, sharps and flats names. This chart is a great aid for learning guitar theory and fretboard navigation... Read more

Guitar Fretboard Intervals Exercise Tool

guitar tutorial thumbnail image

Learn and memorize fretboard intervals with this free tool. Exercise your guitar fretboard knowledge and get able to construct chords and scales on the fly... Read more

Guitar Notes | How To Learn The Fretboard

Guitar Fretboard Notes | Complete Tutorial

This guitar tutorial will teach you all you need to know about guitar notes: the fretboard note names, strings, frets, octaves and more. Free pdf diagrams and interactive guitar software included... Read more

Questions or comments? Drop a line below!
