7th Chords On Guitar

Chord Chart With the Six Most Important Seventh Chords

7th intervals on guitarIn this tutorial we'll learn how to play 7th guitar chords on the guitar. When learning guitar, it's common to start playing some basic major and minor chords, that are composed of three tones. The real fun begins when we add another tone and give birth to new sounds.

We can found Seventh Chords everywhere: Jazz, Blues, Country, even Pop music use often 7th chords.

In this post, we're going to start from triads, which are the foundation of chord construction, then well see how to combine them with the different types of seventh intervals to create new chord kinds. Then we'll see how to play seventh chords in the context of a chord progression.

Let's see how to construct 7th chords and where they are used.

Table of Contents:

It all starts from triads

The most basic chord kind is the triad. We can have 4 different kinds of triad:

The following tables help you understand better the interval structure of each type of triad:

Major Triad

A Major Triad is composed of the Root (R), the Major Third (3) and the Perfect Fifth (5)

1
b2
2
b3
3
4
b5
5
#5
6
b7
7

Minor Triad

A Minor Triad is composed of the Root (R), the Minor Third (b3) and the Perfect Fifth (5)

1
b2
2
b3
3
4
b5
5
#5
6
b7
7

Diminished Triad

A Diminished Triad is composed of the Root (R), the Minor Third (b3) and the Diminished Fifth (b5)

1
b2
2
b3
3
4
b5
5
#5
6
b7
7

Augmented Triad

An Augmented Triad is composed of the Root (R), the Major Third (3) and the Augmented Fifth (#5)

1
b2
2
b3
3
4
b5
5
#5
6
b7
7

Seventh Intervals

So far we've seen the basic intervals that are the building blocks of triads: major and Minor Thirds, and Diminished, Perfect and augmented Fifths. Now we introduce a new kind of interval: the Seventh. Seventh intervals exist in three different kinds:

  • Major Seventh (11 half-steps)
  • Minor Seventh (10 half-steps)
  • Diminished Seventh (9 half-steps)

Here are some examples with note names:

  • the Major Seventh of C is B
  • the Minor Seventh of C is Bb
  • the Diminished Seventh of C is Bbb

Some of you probably have noticed that if we count 9 half-steps from C, we land on the note A, not Bbb. This is an enharmonic: two notes with the same pitches but different names, depending on the context in which they are used. We said Bbb instead of A because we made the process of "diminish" the note B (Major Seventh) to Bbb (Diminished Seventh, that consists of a Major Seventh lowered by two half-steps)

The table below shows you visually the three kinds of Seventh Interval

1
b2
2
b3
3
4
b5
5
#5
bb7
b7
7

Stacking Seventh Intervals on the Top of Triads

Now that we know the basic triad types and the Seventh intervals, we can stack them together to obtain different combinations:

TriadSeventhChordIntervalsExample
Major Triad+Major Seventh (7)=Major Seventh ChordR, 3, 5, 7C Maj7
Major Triad+Minor Seventh (b7)=Dominant Seventh ChordR, 3, 5, b7C7
Minor Triad+Minor Seventh (b7)=Minor Seventh ChordR, b3, 5, b7C min7
Minor Triad+Major Seventh (7)=Minor Major Seventh ChordR, b3, 5, 7C min maj7
Diminished Triad+Minor Seventh (b7)=m7b5 Seventh ChordR, b3, b5, b7C m7b5
Diminished Triad+Diminished Seventh (bb7)=Diminished Seventh ChordR, b3, b5, bb7C dim7

There exist other possible combinations but are rarely used and will not be covered in this tutorial.

In the following, you'll find the most common guitar chord diagrams for 7th chords. All the diagrams are with the root of C, but the shapes are movable. That means that you can shift the shape up and down the neck to play chords of the same quality but with a different root. This is made possible by the fact that movable shapes don't use any open string.

For each chord, we show possible fingerings with root on the 6th, 5th and 4th strings.

If you need help in reading these diagrams, check the how to read chord tables tutorial.

download this tutorial in pdf Download the free Guitar Chords Chart in pdf format.

Major Seventh Chord Chart (maj7)

The Major Seventh chord is composed of the Root, Major Third, Perfect Fifth and Major Seventh

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
c maj seventh guitar chord with root on the 6th string

Root on the 6th string

c maj seventh guitar chord with root on the 5th string

Root on the 5th string

c maj seventh guitar chord with root on the 5th string

Root on the 5th string (alternative)

c maj seventh guitar chord with root on the 4th string

Root on the 4th string

Dominant Seventh Chord Guitar Shapes (7)

The Dominant Seventh chord is composed of the Root, Major Third, Perfect Fifth and Minor Seventh

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
c dominant seventh guitar chord with root on the 6th string

Root on the 6th string

c dominant seventh guitar chord with root on the 5th string

Root on the 5th string

c dominant seventh guitar chord with root on the 5th string

Root on the 5th string (alternative)

c dominant seventh guitar chord with root on the 4th string

Root on the 4th string

Minor Seventh Guitar Chord Charts (m7)

The Minor Seventh chord is composed of the Root, Minor Third, Perfect Fifth and Minor Seventh

1
b2
2
b3
3
4
b5
5
#5
6
b7
7

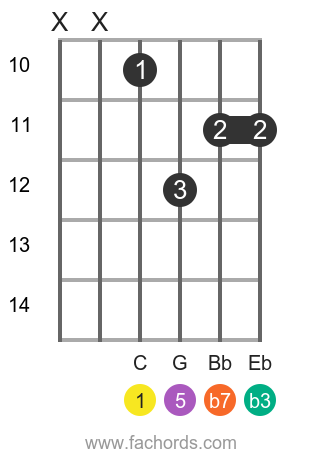

c minor seventh guitar chord with root on the 6th string

Root on the 6th string

c minor seventh guitar chord with root on the 5th string

Root on the 5th string

c minor seventh guitar chord with root on the 5th string

Root on the 5th string (alternative)

c minor seventh guitar chord with root on the 4th string

Root on the 4th string

Minor Seventh Flat Five Chord Guitar Shapes (m7b5)

The Minor Seventh Flat Five (m7b5) chord is composed of the Root, Minor Third, Diminished Fifth and Minor Seventh

1
b2
2
b3
3
4
b5
5
#5
6
b7
7

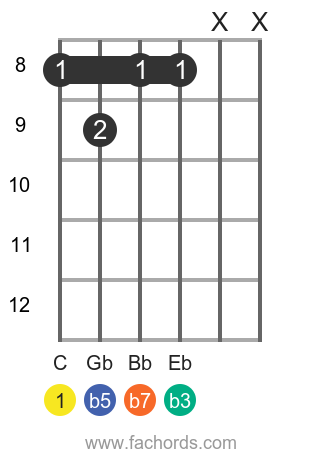

c minor seventh flat five guitar chord with root on the 6th string

Root on the 6th string

c minor seventh flat five guitar chord with root on the 5th string

Root on the 5th string

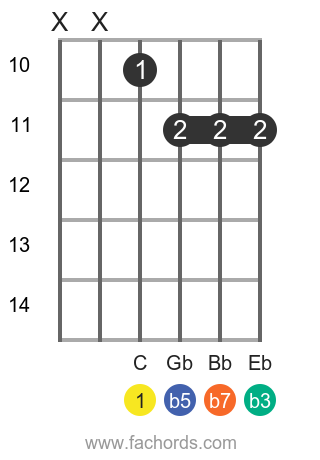

c minor seventh flat five guitar chord with root on the 4th string

Root on the 4th string

Diminished Seventh Guitar Chord Diagrams (Dim7)

The Diminished Seventh chord is composed of the Root, Minor Third, Diminished Fifth and Diminished Seventh.

This chord is symmetric, each tone in the chord is far three half-steps from the other, as you can see in the table below. You can learn more in the diminished chords tutorial.

1
b2
2
b3
3
4
b5
5
#5
6
b7
7
c diminished seventh flat five guitar chord with root on the 6th string

Root on the 6th string

c diminished seventh flat five guitar chord with root on the 5th string

Root on the 5th string

c diminished seventh flat five guitar chord with root on the 4th string

Root on the 4th string

Minor Major Seventh Chord (m maj7)

The Minor Major Seventh chord is composed of the Root, Minor Third, Perfect Fifth and Major Seventh.

1
b2
2
b3
3
4
b5
5
#5
6
b7
7

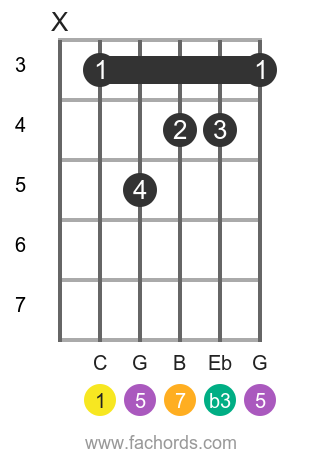

c minor major seventh flat five guitar chord with root on the 6th string

Root on the 6th string

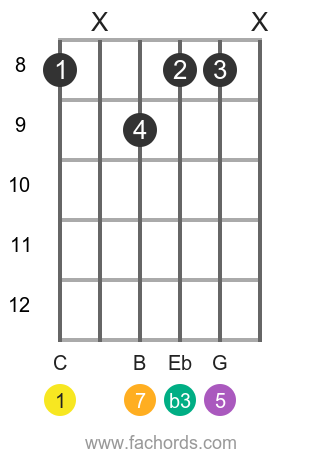

c minor major seventh flat five guitar chord with root on the 5th string

Root on the 5th string

How To Use 7th Guitar Chords

Now that we know how to play 7th chords, let's see how to include them in any chord progression. Depending on the scale on which the chord progression is created, we can encounter different situations.

In a Major Scale, we have a Major Seventh Chord on the 1st and 4th degree, a Minor Seventh Chord on the 2nd, 3rd and 6th degree, a Dominant 7 Chord on the 5th degree , and a Minor 7b5 Chord on the 7th degree.

C Major Scale

For example, if we play the classic chord progression I-V-vi-IV in the key of C, we would have:

  • C maj7
  • G7
  • A m7
  • F maj7
Tonic (I)Supertonic (ii)Mediant (iii)Subdominant (IV)Dominant (V)Submediant (vi)Leading tone (vii)
C maj7Dm7Em7F maj7G7Am7Bm7/b5

A Natural Minor Scale

Switching to minor keys, here below you find the Seventh Chords generated from the Natural Minor Scale:

Playing the same progression i-v-VI-iv in the A minor key, we would obtain:

  • A m7
  • E m7
  • F maj7
  • D m7
Tonic (i)Supertonic (ii)Mediant (III)Subdominant (iv)Dominant (v)Submediant (VI)Leading tone (7)
Am7Bm7/b5C maj7Dm7Em7F maj7G7

A Harmonic Minor Scale

If you want to build chord progressions on the Harmonic Minor scale, things become more interesting, because, due to the particular nature of the harmonic minor scale, new chords qualities appear, but we're going to learn more about this topic in a next tutorial.

Try to experiment by applying different chord progressions of these scales and pay attention to the sound that 7th chords create.

Tonic (i)Supertonic (ii)Mediant (III)Subdominant (iv)Dominant (V)Submediant (VI)Leading tone (vii)
Am(maj7)Bm7/b5C maj7/#5Dm7E7F maj7G# dim7

To learn more about the relation between chords and scales, visit the chords in keys tutorial. If you already have requested your access to the free download area, you can download a helpful pdf with all the chords in keys for each root (you've got the link in your welcome email, otherwise request your access here)

This ends our tutorial on 7th chords for guitar. Practice them by paying attention to how the seventh tone adds a new feeling and different colors to the sound of basic triads.

download this tutorial in pdf Download the free Guitar Chords Chart in pdf format.
