Bb7(b9) Guitar Chord | Play, Hear and Practice Interactively

Bb 7(b9) position 1 guitar chord diagram

Here for B7(b9) instead? The B7(b9) chord page covers it.

Spell Bb7(b9), or Bb seventh flat nine, from Bb and you get Bb, D, F, Ab and Cb: a root, a major third, a perfect fifth, a minor seventh and a flat ninth. The flat ninth lies a half step above the root, one octave up, and that close interval is where the sharp edge of this chord comes from.

The four voicings here run from fret 1 to fret 7, and one of them is a barre shape. When you improvise over this chord, try the Bb Phrygian Dominant scale, the fifth mode of the harmonic minor scale, which covers all five chord tones. Extended chords like this build on the ideas in ninth chords.

Press play in the player at the top of the page to hear Bb7(b9) strummed, then picked as an arpeggio.

Bb 7th with flat 9th guitar chord is also written as Bb7(b9), Bb7b9 or Bb7-9.

Bb7(b9) Chord Notes and Formula

Notes that compose the Bb 7(b9) chord:

Bb D F Ab Cb

How the Dominant Seventh Flat Nine Added chord is built:

Formula: 1 3 5 b7 b9

Same chord, different name: Bb7(b9) is also written as A#7(b9) (A# seventh flat nine).

Bb7(b9) Chord Interactive Fretboard

Want a structured chord roadmap instead of jumping between pages?
Go to the full guitar chords tutorial.

Bb7(b9) Guitar Chord Diagrams

Position 1 Open

Bb 7(b9) position 1 guitar chord diagram

Bb Seventh Flat Nine Finger Positions

  • Mute the low E string
  • Let the D string play without pressing any fret
  • Mute the B string
  • Place your index finger (1) on the fret 1 of the A string
  • Place your middle finger (2) on the fret 1 of the G string
  • Place your ring finger (3) on the fret 1 of the high E string

Position 2 Movable

Bb 7(b9) position 2 guitar chord diagram

Bb Seventh Flat Nine Finger Positions

  • Mute the B string
  • Mute the high E string
  • Place your index finger (1) on the fret 4 of the G string
  • Place your middle finger (2) on the fret 5 of the A string
  • Place your ring finger (3) on the fret 6 of the low E string
  • Place your pinky finger (4) on the fret 6 of the D string

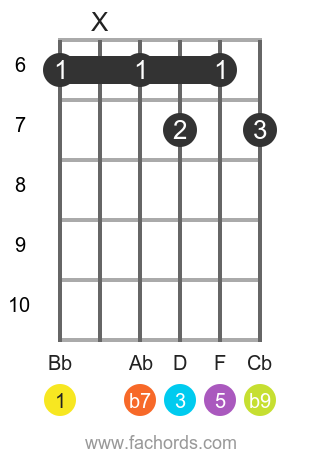

Position 3 Barre Movable

Bb 7(b9) position 3 guitar chord diagram

Bb Seventh Flat Nine Finger Positions

  • Mute the A string
  • Place your index finger (1) on the fret 6 of the low E, D and B strings at the same time
  • Place your middle finger (2) on the fret 7 of the G string
  • Place your ring finger (3) on the fret 7 of the high E string

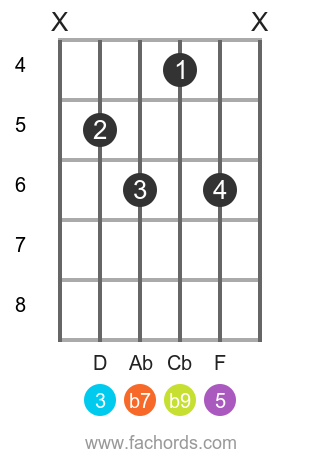

Position 4 Movable Slash Chord

Bb 7(b9) position 4 guitar chord diagram (Bb7(b9)/D slash chord)

Bb/D Seventh Flat Nine Finger Positions

  • Mute the low E string
  • Mute the high E string
  • Place your index finger (1) on the fret 4 of the G string
  • Place your middle finger (2) on the fret 5 of the A string
  • Place your ring finger (3) on the fret 6 of the D string
  • Place your pinky finger (4) on the fret 6 of the B string

The lowest note is D, not the root, so this voicing is the slash chord Bb7(b9)/D.


download this tutorial in pdf Find more shapes in our all guitar chords online library. If you prefer a printable pdf, download the Free Guitar Chords Chart Pdf


Chords That Go With Bb7(b9)

One key where Bb7(b9) fits is Eb major, where it works as the V chord, an altered chord whose Cb is borrowed from outside the key. These are the main chords of that key, the ones you will often hear around it:

See every key in the guitar keys chart, or build a progression with these chords in the chord progression generator.


More Bb Chords

Want to know how this chord is built? Read dominant chords explained, or browse all Bb guitar chords.


Play This Chord With Other Roots

C 7(b9) | D 7(b9) | E 7(b9) | F 7(b9) | G 7(b9) | A 7(b9) | B 7(b9) | C#7(b9) | D#7(b9) | F#7(b9) | G#7(b9) | A#7(b9) | Ab7(b9) | Bb7(b9) | Db7(b9) | Eb7(b9) | Gb7(b9)


FAQ

What notes are in Bb7(b9)?

Bb, D, F, Ab and Cb. The Cb is the flat ninth and sounds like B natural, a half step higher than Bb one octave up.

Why is the flat ninth in Bb7(b9) called Cb and not B?

A ninth higher than B-flat must use the letter C, lowered by a half step to Cb. Writing B instead would describe an altered octave, not a ninth. Cb and B are the same pitch.

Is A#7(b9) the same as Bb7(b9)?

They sound the same. A#7(b9) is spelled A#, C##, E#, G# and B, which needs double accidentals, so the Bb7(b9) spelling is easier to read.

Which scale suits the Bb seventh flat nine chord?

The Bb Phrygian Dominant scale: Bb, Cb, D, Eb, F, Gb and Ab. It contains all five chord tones and is the fifth mode of harmonic minor.

How many ways can I play Bb7(b9)?

Four voicings are listed, from the first fret to the seventh fret. One of them uses open strings and one is a barre voicing.
